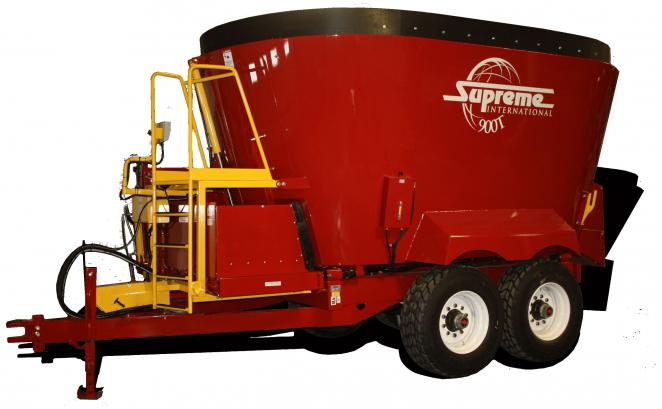

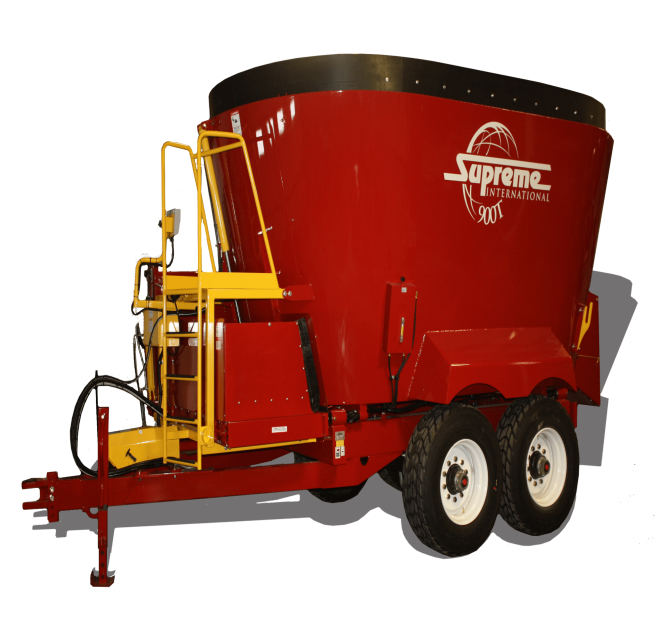

The 900T Pull Type Tandem Axle has a maximum payload of 24,000 lbs (10,886 kg), struck capacity of 739 ft³ (20.9 m³) or 849 ft³ (24.0 m³) with tub extension, and requires 130 horse power (97 kW).

21 spline CV PTO,500/45R20  walking beam, 41” walking beam frame, dogleg, dual discharge, hydraulic extender,  scale, hard faced baffles, hard faced door, front shield magnets, 10” rubber extension, taillights, extra display for scale on left side.

130hp / 97kW

Struck Capacity: 739ft.³ / 20.9m³
Capacity with Extension: 849ft.³ / 24.0m³

275/70R 22.5 Truck Tires with Budd Wheels and HD Axle

24,00lbs / 10,886kg

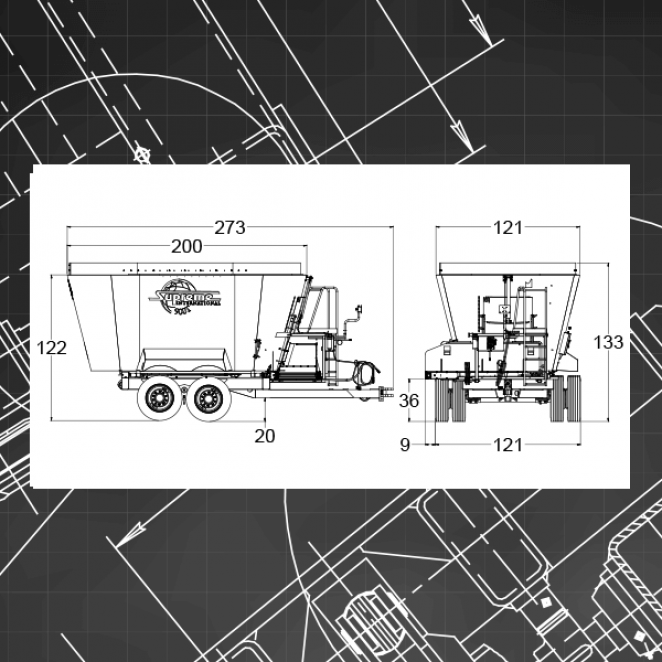

Height: 122" / 310cm
Height w/ 10" Extension: 133" / 338cm
Overall Width: 121" / 307cm
Overall Length : 273" / 693cm

540/1000rpm PTO Heavy-Duty, Two-Stage Planetary Drives

Flat: 36" / 91cm
Dogleg; 49" / 125cm
Ext. Dogleg: 60" / 152cm
42" Folding: 47" / 119cm
54" Folding: 52" / 132cm

10 Replaceable Forage Cutting Blades

Front Center Door With 10’ Flat Conveyor

3/4” (19mm) M/S Floor

1/4” (6mm) AR200 Walls

• Tandem Axle
• Two Patented Freestanding Vertical Mixing Auger
• Manual Restrictor Plates
• Heavy-Duty Tubular Steel Frame
• 5/8”/16mm AR200 Auger Flighting
• Ultra Wear Kicker Plates
• Removable Heavy Duty Hitch Jack
• 4pt Scale System
• 12 Volt Battery
• SS Conveyor Top Pan
